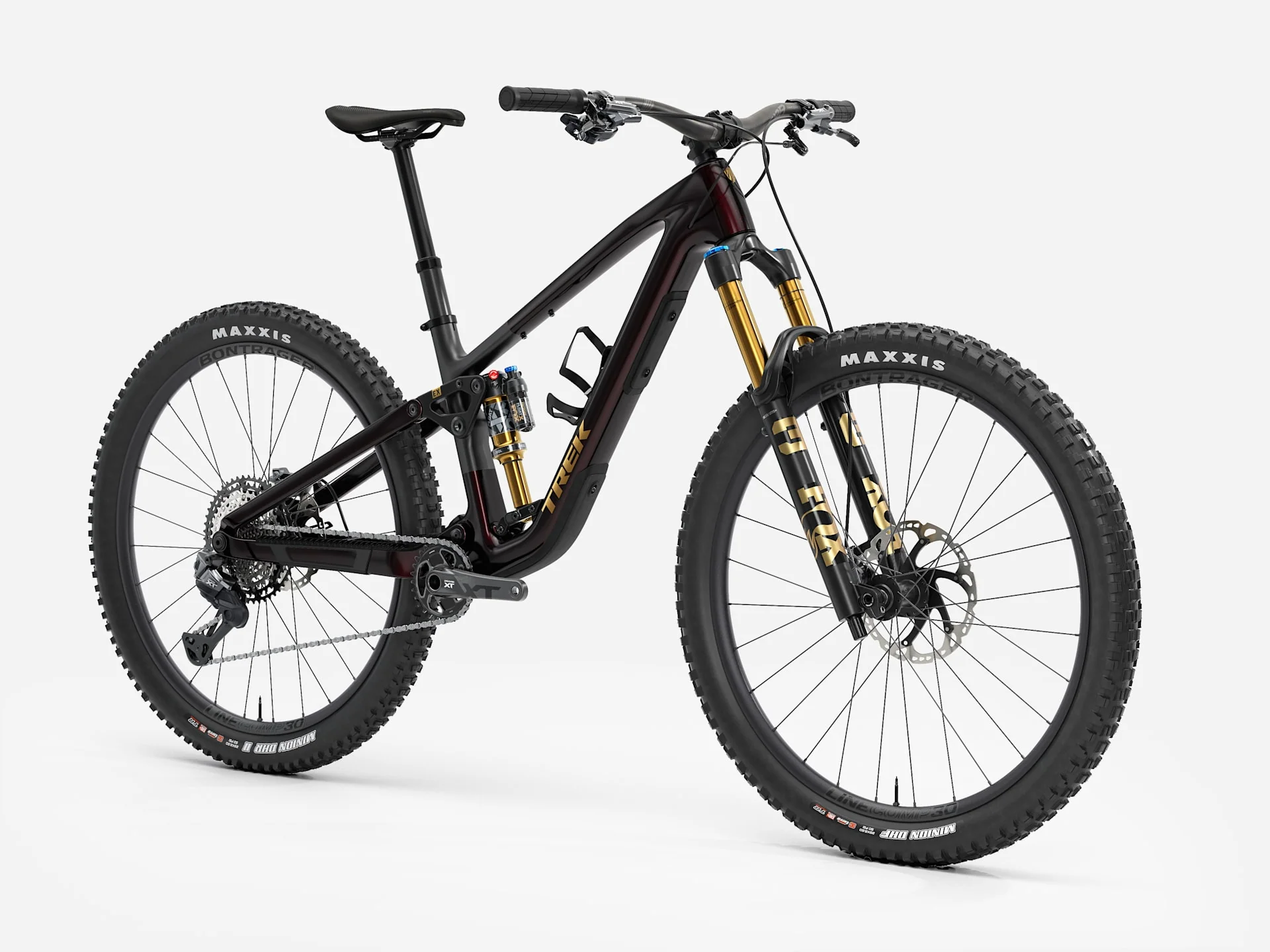

2026 Trek Fuel EX 9.8 XT Di2 Gen 7 - Gloss Dark Carmine/Matte Trek Black

OVERVIEW

The Fuel EX 9.8 XT Di2 is a versatile and adaptable carbon MTB built to tackle any trail, at any time. Its OCLV Mountain Carbon frame pairs with a Fox Factory suspension package (145 mm rear, 150 mm front) to deliver traction and stability in the rough. Shimano's iconic wireless XT Di2 12-speed drivetrain gives you robust, light and crisp customisable shifting, while 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-penny power.

SPECS

*Please note – spec applies to all sizes unless listed separately

Frame: OCLV Mountain Carbon, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Fork: Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 150 mm travel

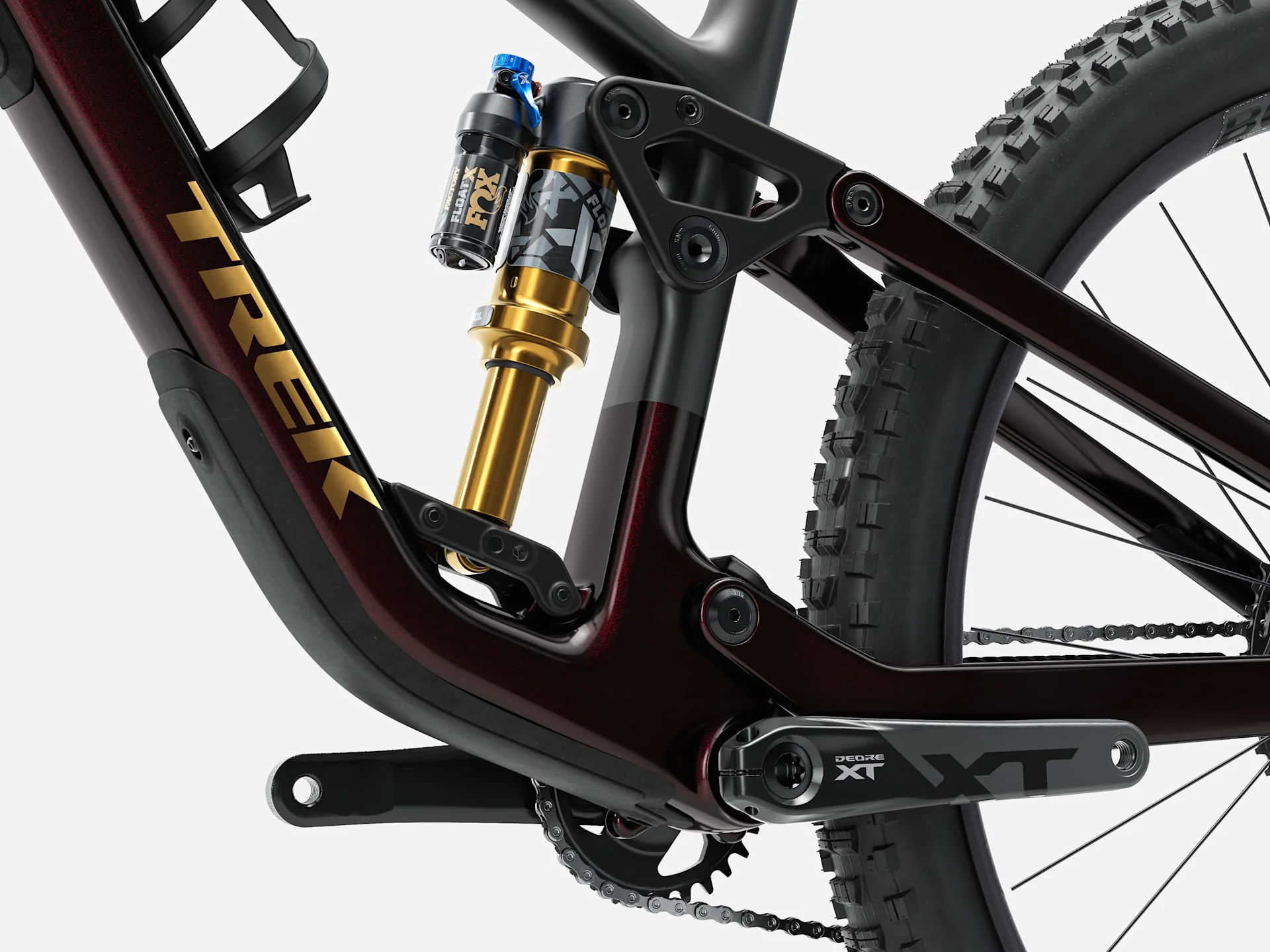

Shock: Fox Factory Float X, 205 mm x 60 mm

Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
*Wheel rear: Size: S

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 27.5"

Size: M, L, XL, XXL

Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano Micro Spline freehub, Boost148, 12 mm thru-axle, 29"
Skewer rear: Bontrager Switch thru-axle, removable lever
*Tyre: Size: S, M, L, XL, XXL

Maxxis Minion DHF, tubeless-ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5''

Size: S

Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5''

Size: M, L, XL, XXL

Maxxis Minion DHR II, tubeless-ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Max tyre size: Frame: 29x2.50", Fork: See manufacturer

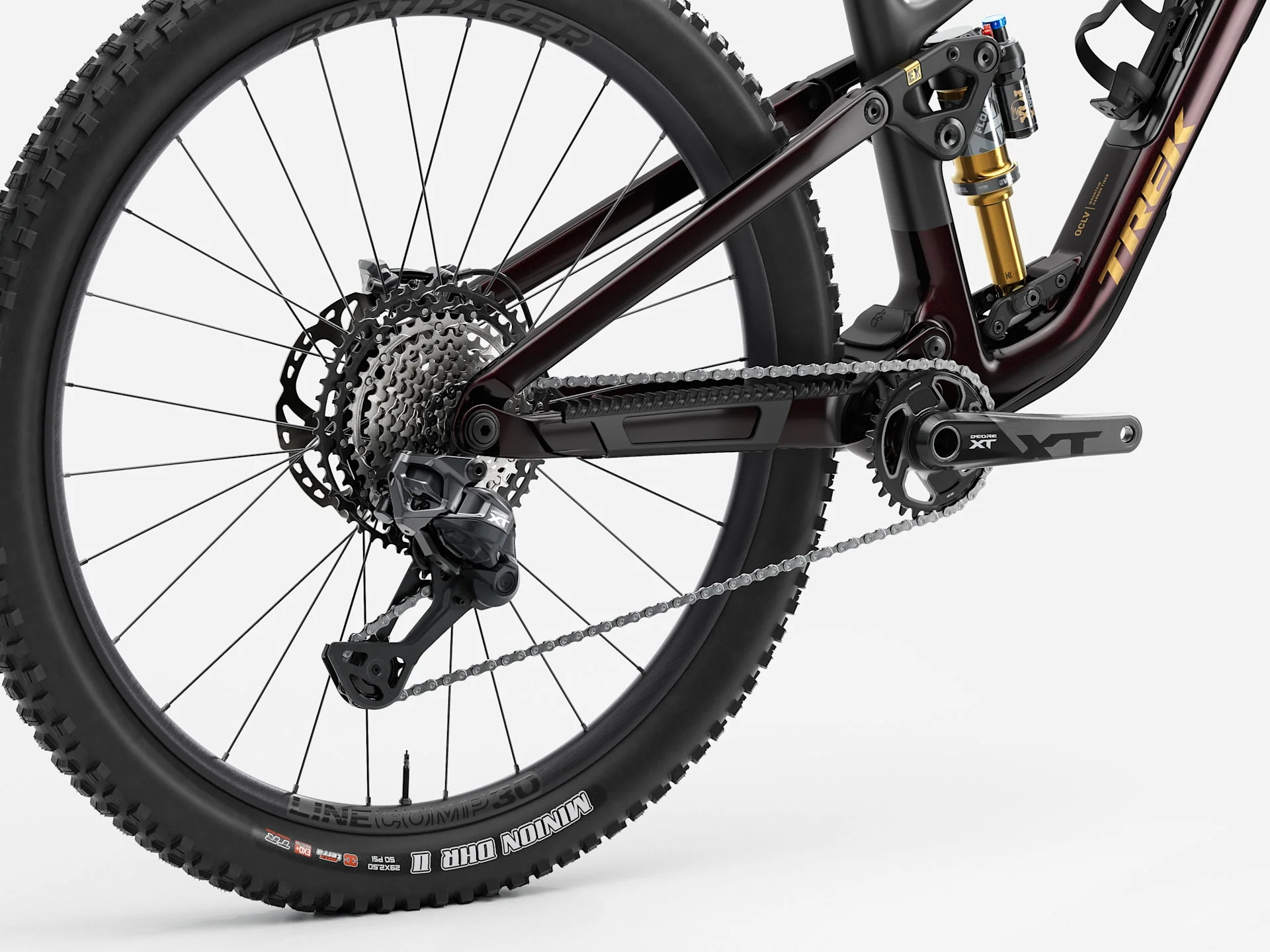

Shifter: Shimano XT Di2 M8250, 12-speed
Rear derailleur: Shimano XT M8250, long cage
Crank: Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
Bottom bracket: Shimano BB-MT501 BSA
Cassette: Shimano XT M8200, 10-51, 12-speed
Chain: Shimano Ultegra/XT M8100, 12-speed
Max. chainring size: Max: 34T (oval – 32T) Min: 30T (oval – 32T)

Saddle: Verse Short Pro, carbon rails, 145 mm width
*Seatpost: Size: S
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9 mm, 410 mm length

Size: M
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length

Size: L, XL, XXL

Bontrager Line Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 515 mm length
Handlebar: Race Face ERA, carbon, 35 mm, 27.5 mm rise, 800 mm width
Grips: Trek Line Elite, lock-on
Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake: Shimano XT M8220 4-piston hydraulic disc
*Brake rotor: Size: S, M, L, XL, XXL

Shimano RT86, 6-bolt, 180 mm

Size: S, M, L, XL, XXL

Shimano RT86, 6-bolt, 203 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer

Weight: M - 15.08 kg / 33.25 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
